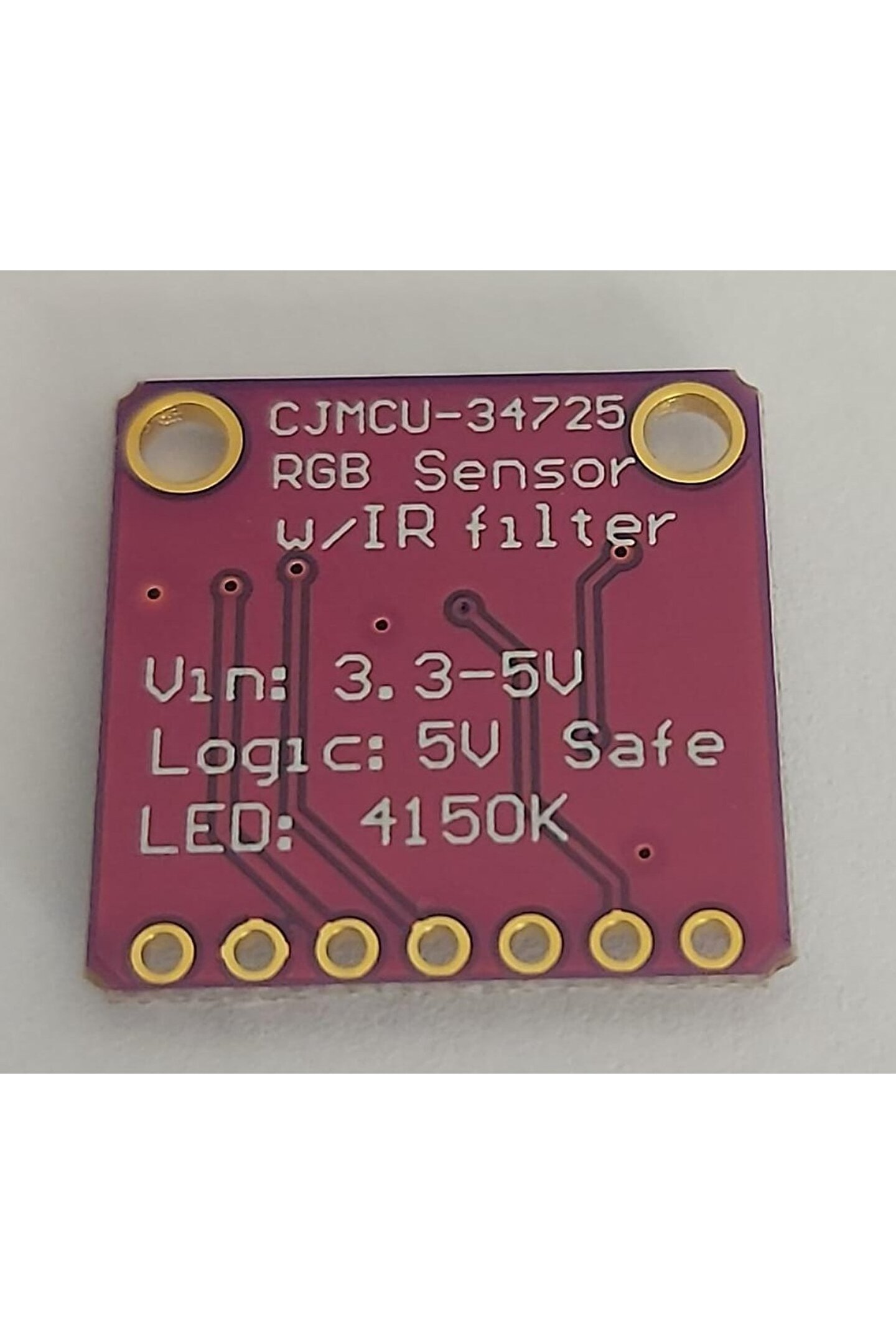

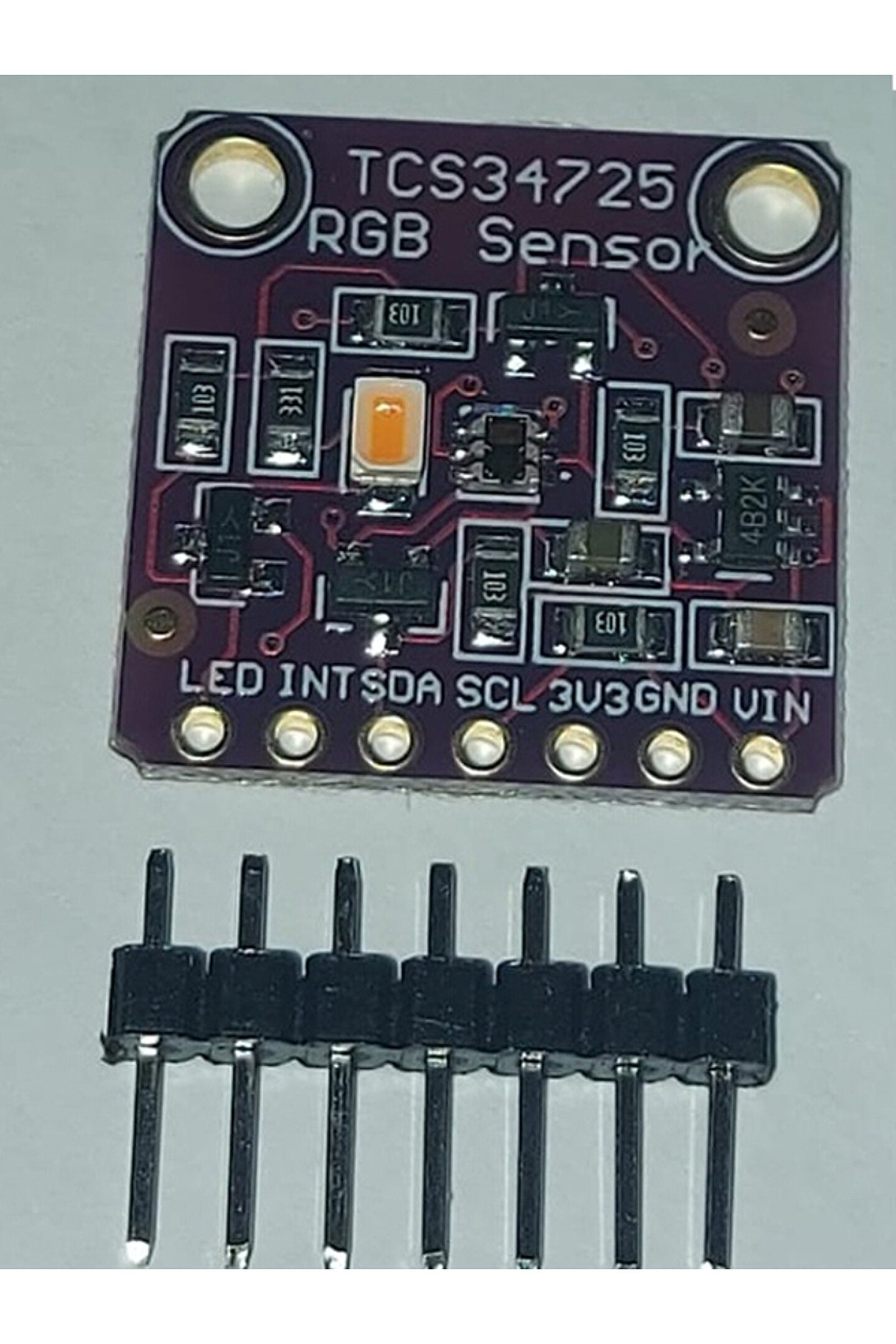

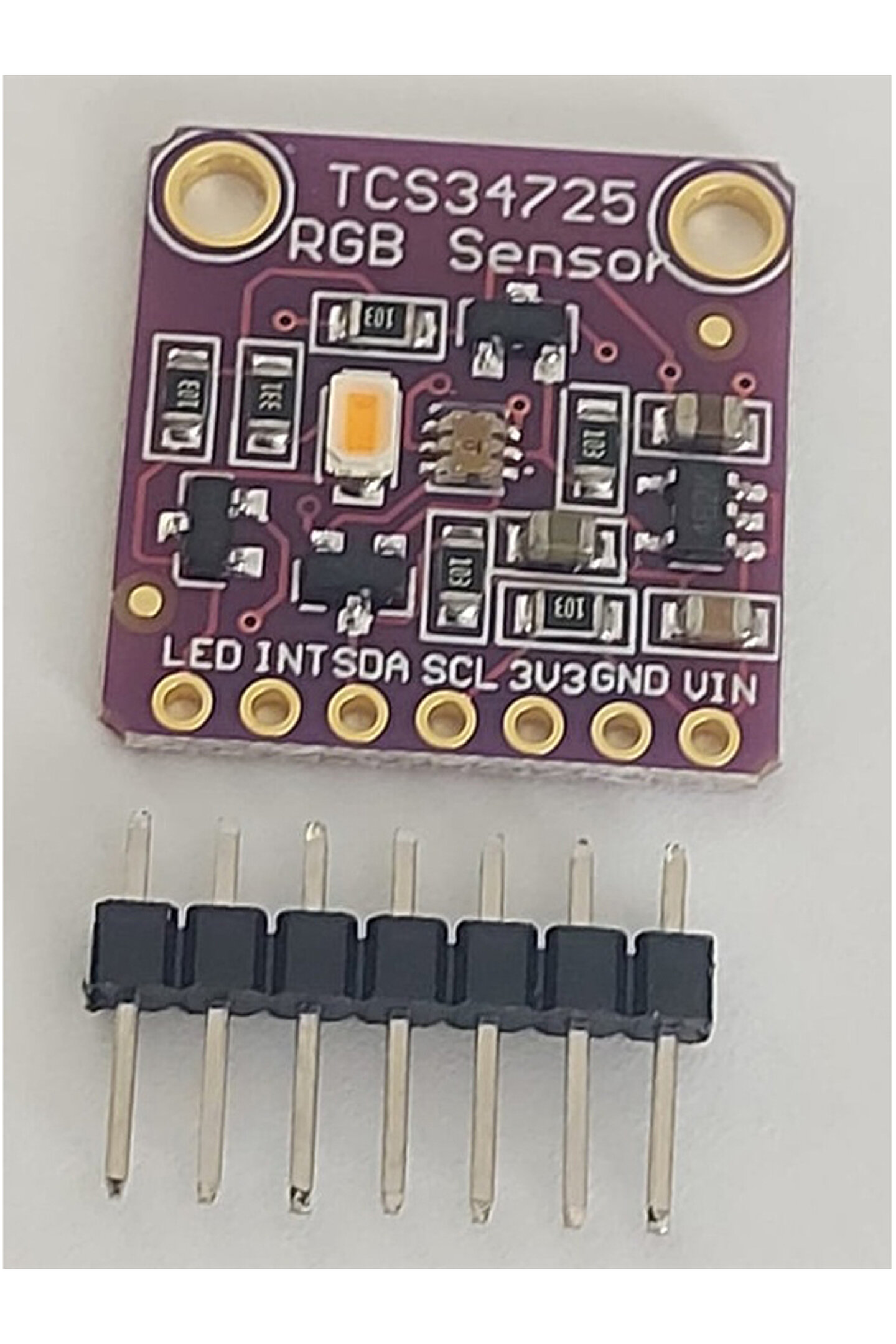

EmAyCenter Tcs34725 Renk Sensör Modülü Color Sensor Rgb Recognition

TCS34725 Renk Sensör Modülü Color Sensor RGB Recognition TCS3472 devices available in red, green and blue (RGB) and digital Mingguang induction return value. Color sensitive photodiode integrated sheet cutting and localized infrared light blocking filter, minimizing the infrared spectral components of the incident light, so that more accurate color management. High sensitivity, wide dynamic range and an infrared light blocking filter makes TCS3472 become ideal lighting conditions change and through color sensitive element attenuating materials under conditions of solution. Specification: Red, Green, Blue (RGB), and White Light Sensing with IR Blocking Filter Programmable Analog Gain and Integration Time 3,800,000:1 Dynamic Range Working voltage: 3.3~5V Detection distance: 3 ~ 10mm Communication method: IIC Very High Sensitivity : Ideally Suited for Operation Behind Dark Glass Maskable Interrupt Programmable Upper and Lower Thresholds with Persistence Filter Power Management Low Power : 2.5-uA Sleep State 65-uA Wait State with Programmable Wait State Time from 2.4 ms to > 7 Seconds I2C Fast Mode Compatible Interface Data Rates up to 400 kbit/s Input Voltage Levels Compatible with VDD or 1.8 V Bus Register Set and Pin Compatible with the TCS3x71 Series Small 2 mm*2.4 mm Dual Flat No-Lead (FN) Product Pin Definitions: VIN power supply positive GND power supply negative 3V3 3.3V output SCL clock signal SDA data signal INT interrupt output, active low The LED controls the LED light near the sensor. When the high level signal is on or off, the LED light is on, and the low level signal LED is off. Paket İçeriği : 1 Adet TCS34725 Renk Sensör Modülü
