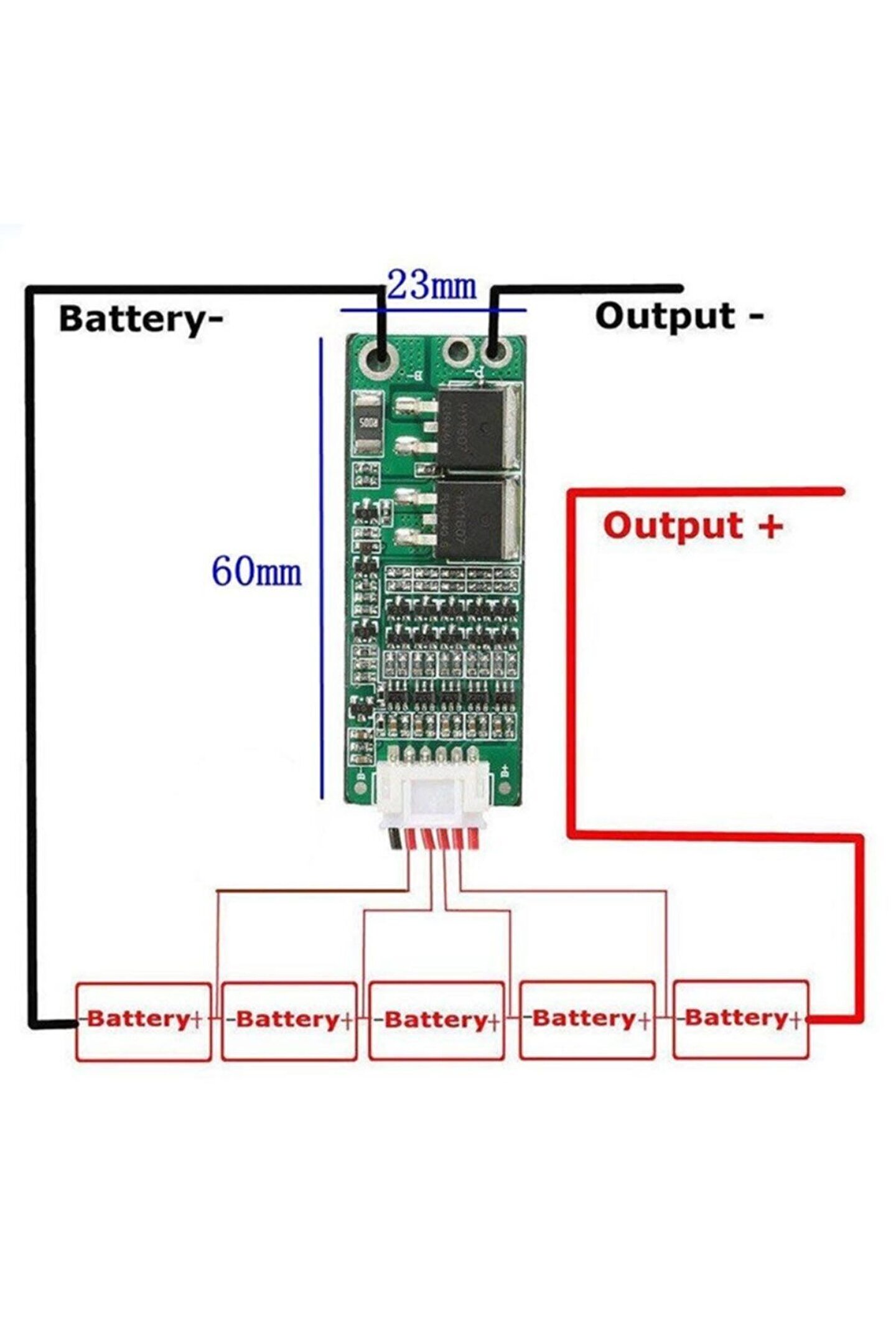

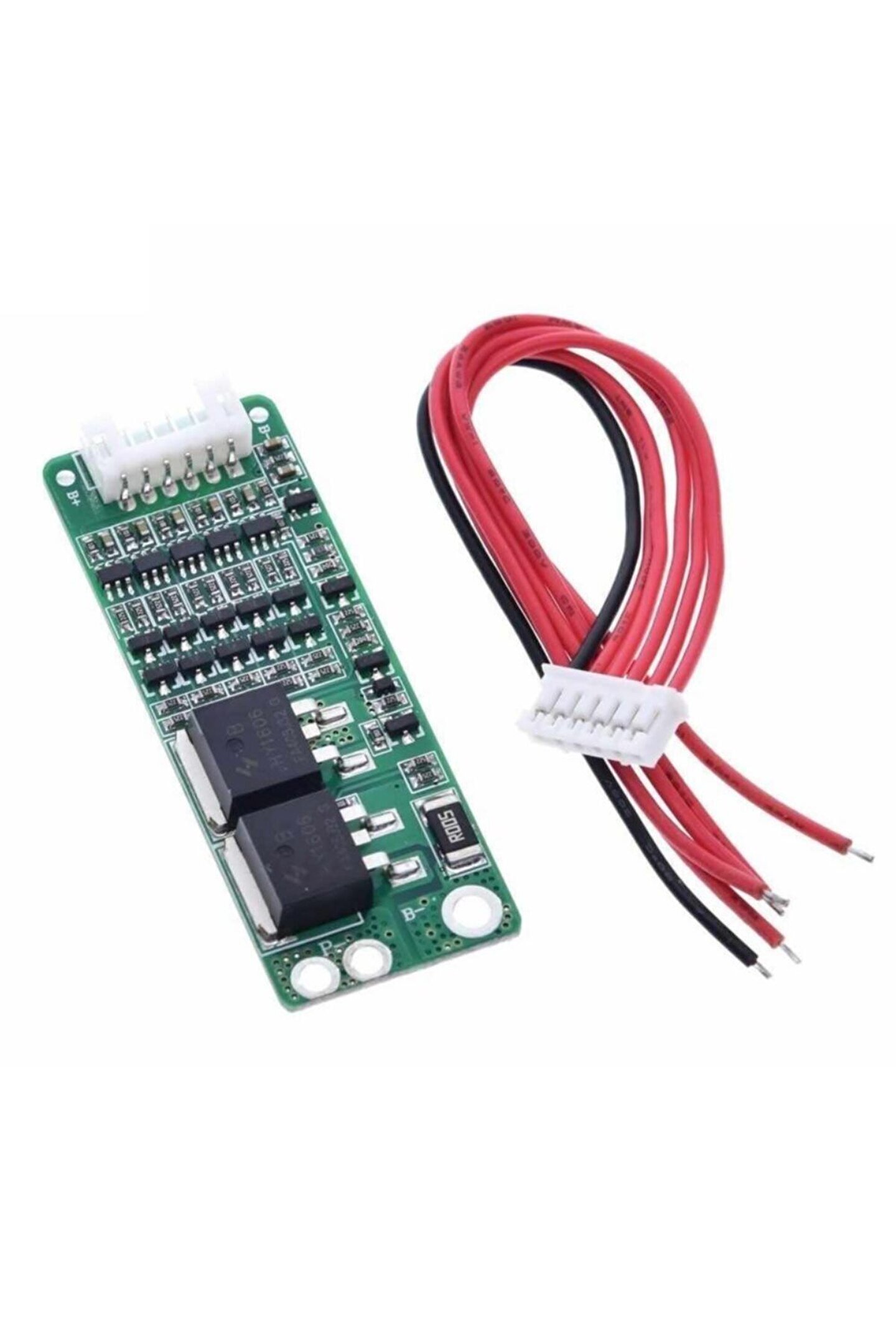

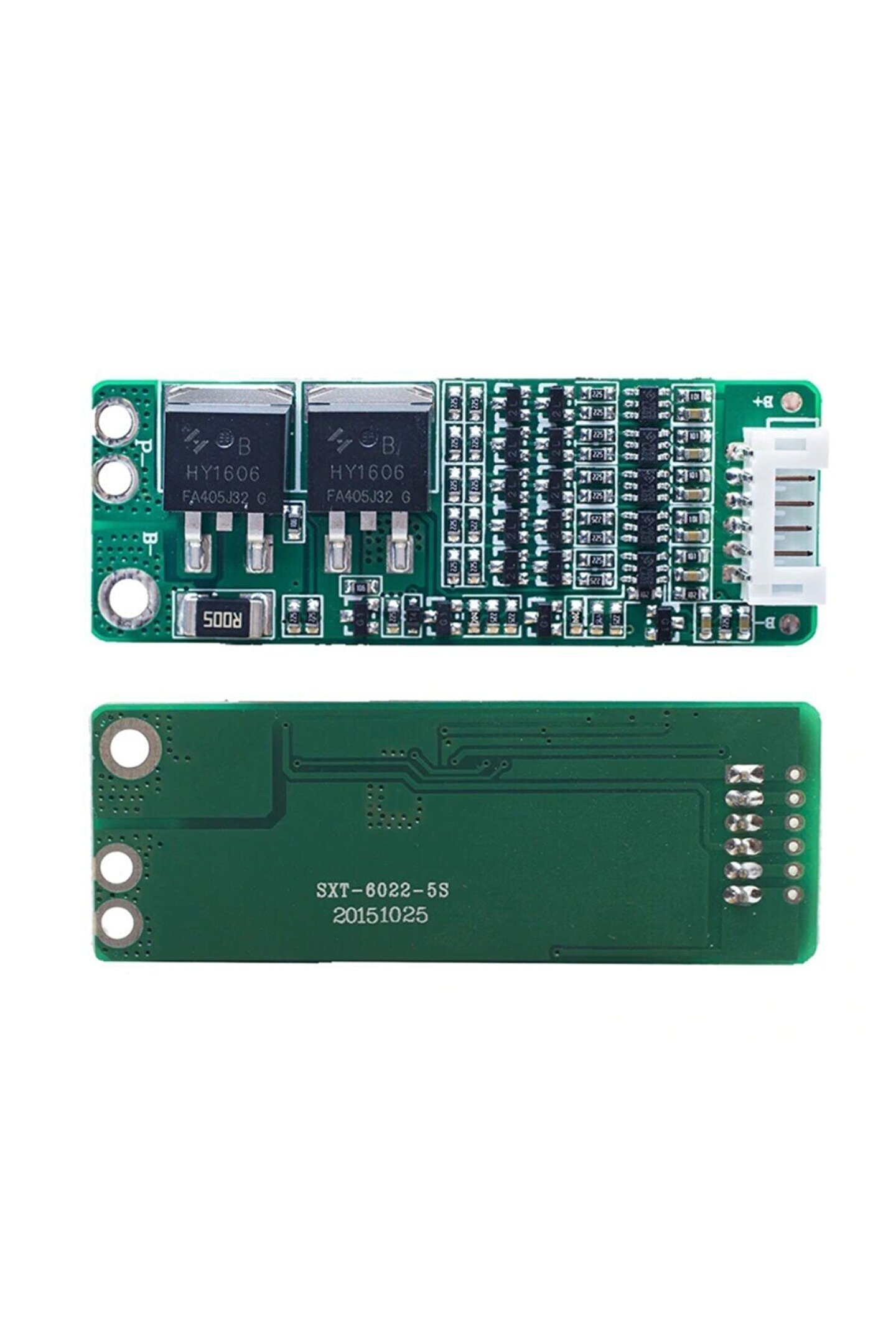

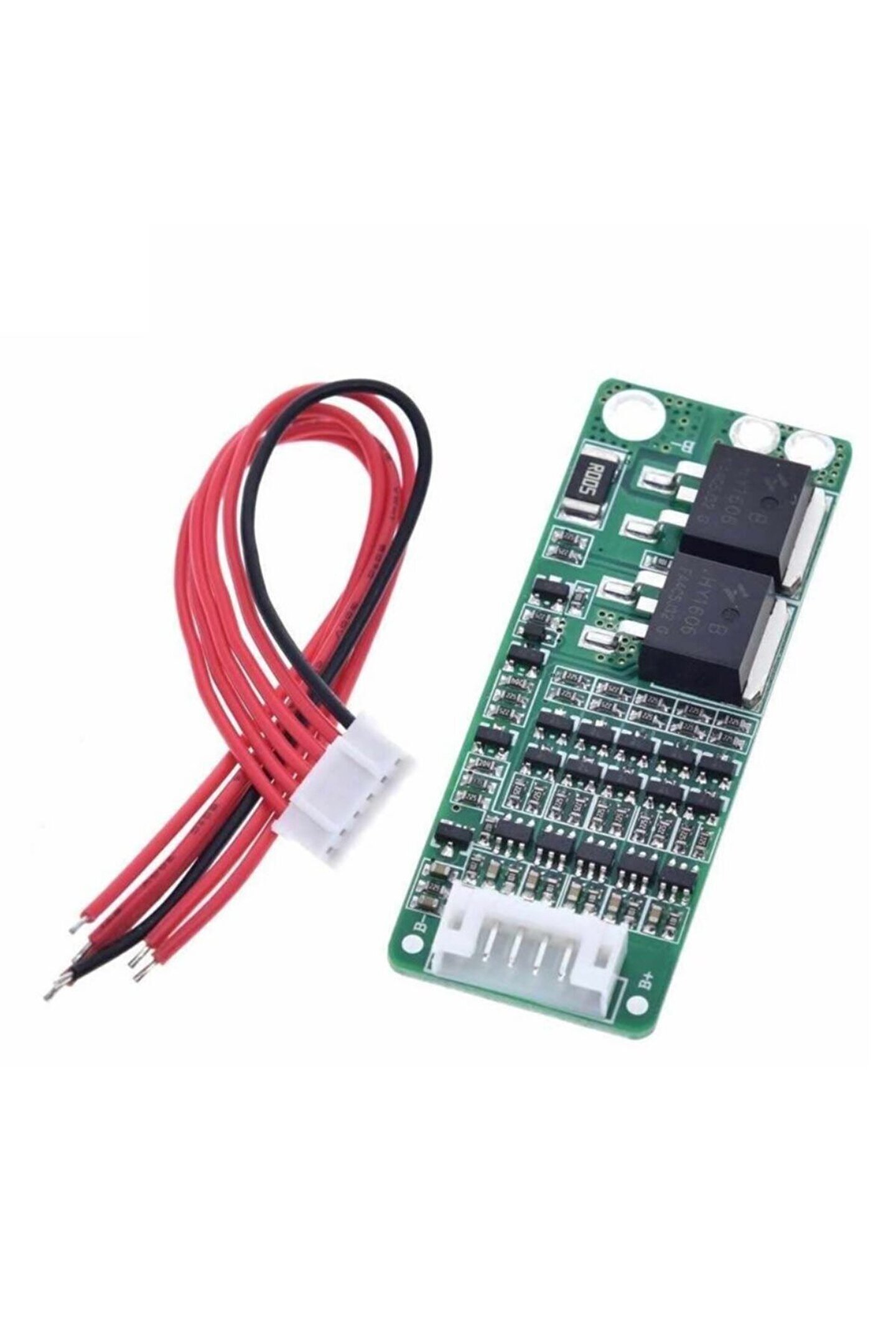

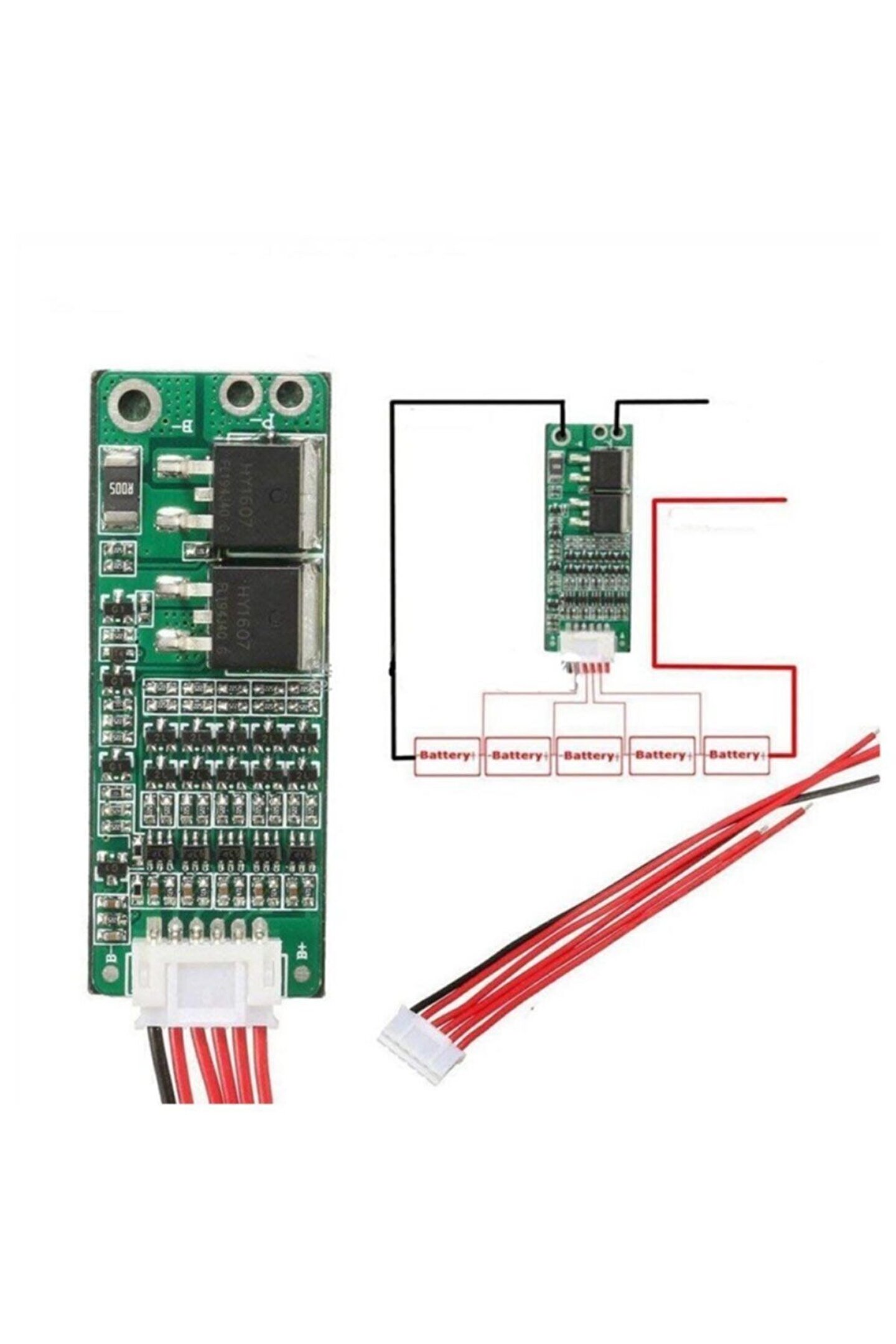

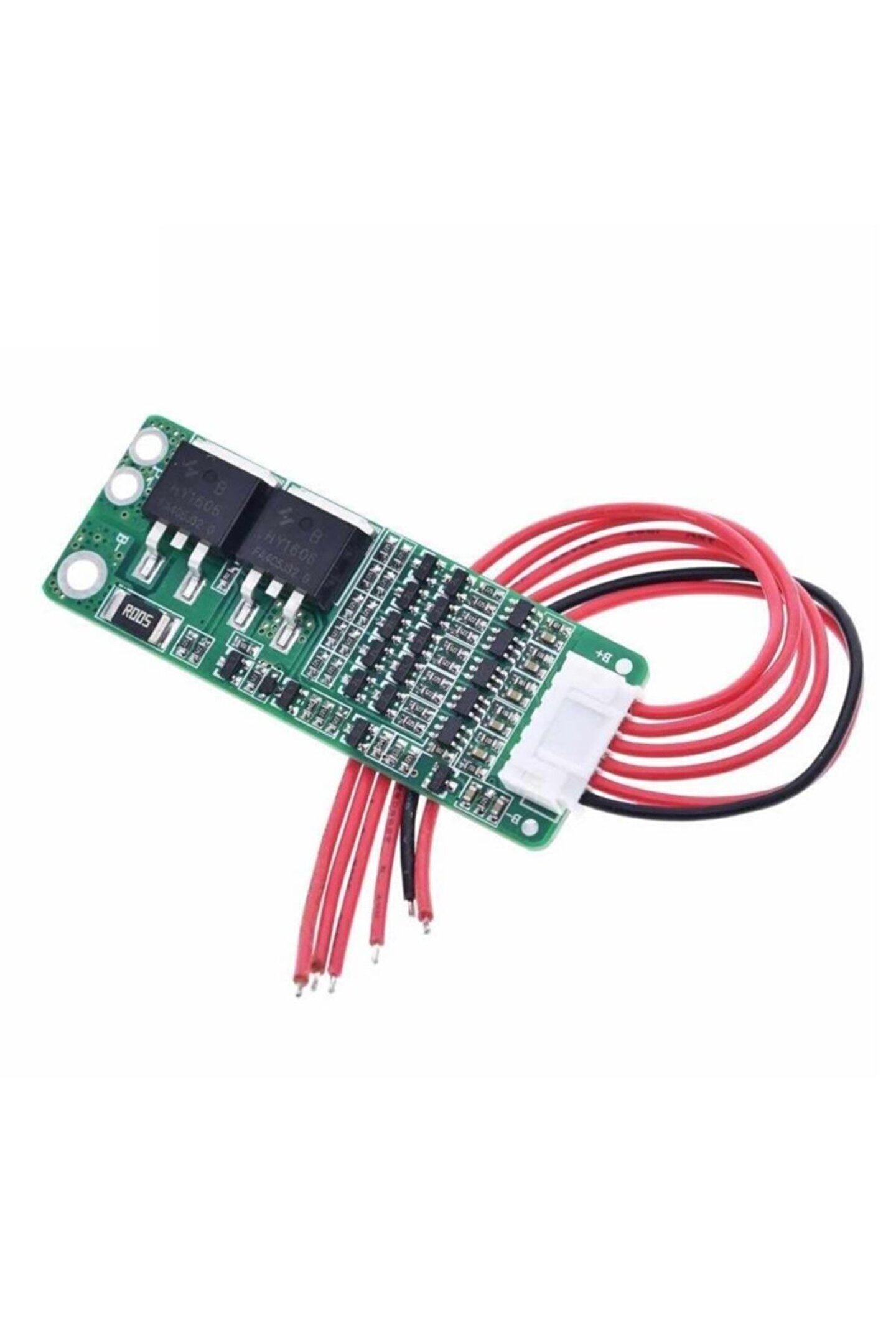

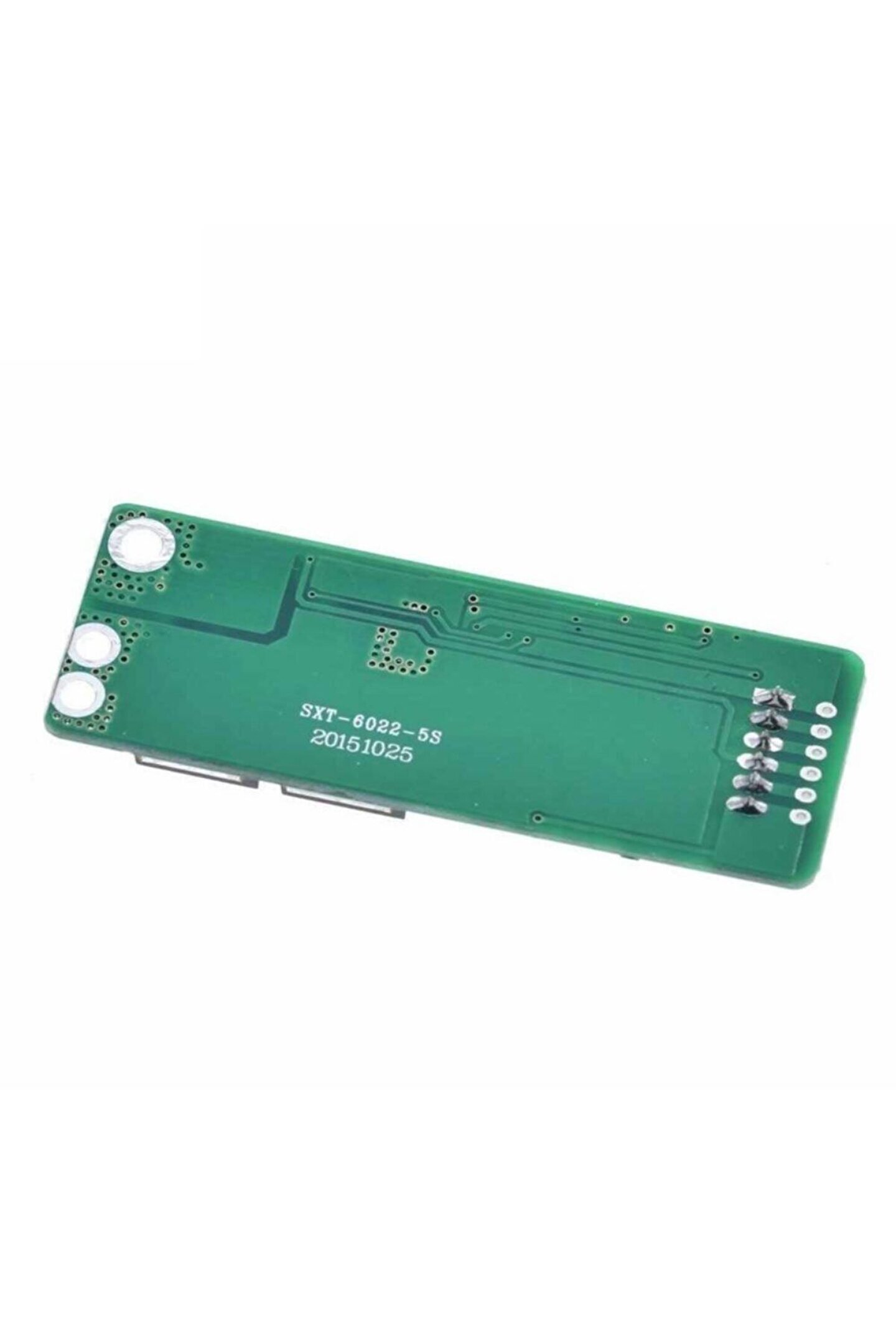

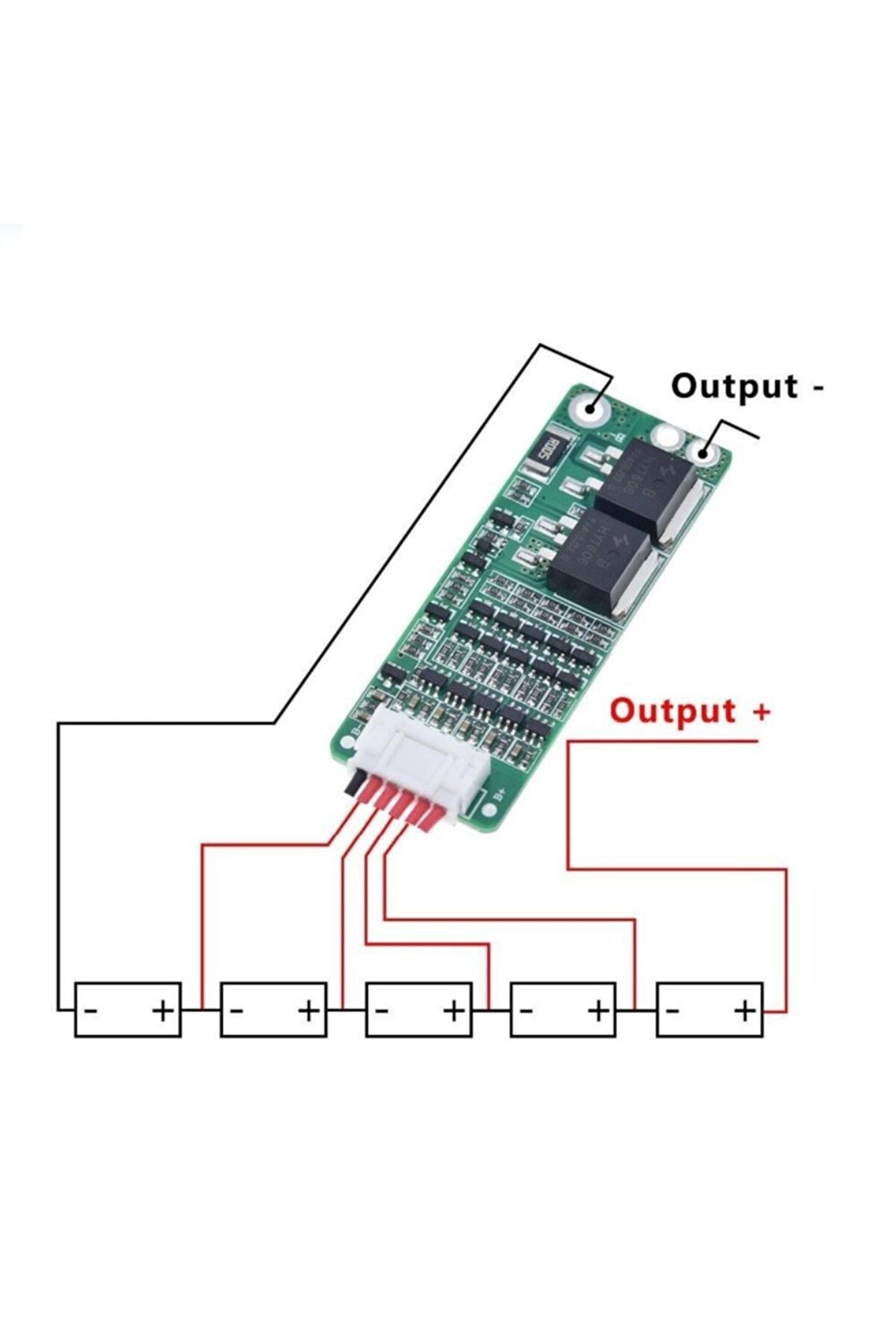

5S 15A Lityum Batarya BMS Koruma Kartı 5 Adet seri 18650 pil için uygundur.; Pil şarj etmez.; Pil koruması içindir.; Özellikler: 5 Adet seri lityum pil için koruma devresi.; ; Aşırı şarj koruması.; ; Aşırı deşarj koruması.; ; Kısa devre koruması.; ; Aşırı akım akma koruması.; ; 21V luk lityum pil paketleri için uygundur.; ; Kaliteli ve dayanıklı kart tasarımı.; ; Ölçüler: 60mm x 23mm ; Specifications: Charging voltage: 21 V ; Charge MOS pressure value: 35 V ; Discharge MOS pressure value: 35 V ; Charging current: 56 A ; Continuous discharge current: 15 A ; Over current protection: 50/55/60 A ; Over current protection delay: 20/25/30mS ; Single section since the power consumption: 30uA ; Single section between the power consumption: 3uA ; Single section over charge detection voltage: 4.18- /4.22V ; Over charge recovery voltage 4.05- 4.15 V ; Over charge detection delay: 0.5/1.0/2.0S ; Single section over discharge detection voltage: 2.75-2.85 V ; Over discharge recovery voltage: 2.90-3.20 V ; Over discharge detection delay: 0.5-2.0S ; Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery ; Short circuit protection delay 200/500/600uS ; The normal working state of B- to P- resistance: 5m? ; Continuous 15A current maximum temperature rise: 25 ° ; Working environment (humidity) relative humidity: ?98% (long-term stability under the humidity) ; Working environment (temperature) -30 ~ 80°(in the lower temperature range of long-term stability) ; Size: approx.; 60*23mm ; Paket İçeriği: 1 Adet 5S 15A Lityum Batarya BMS Koruma Kartı ; 1 Adet Bağlantı Kablosu.; ( Resimlerden inceleyiniz.; ) ;
