Açıklamalar:

The 868/915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, the signal reception will be unstable)

Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged!

With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!

Example:

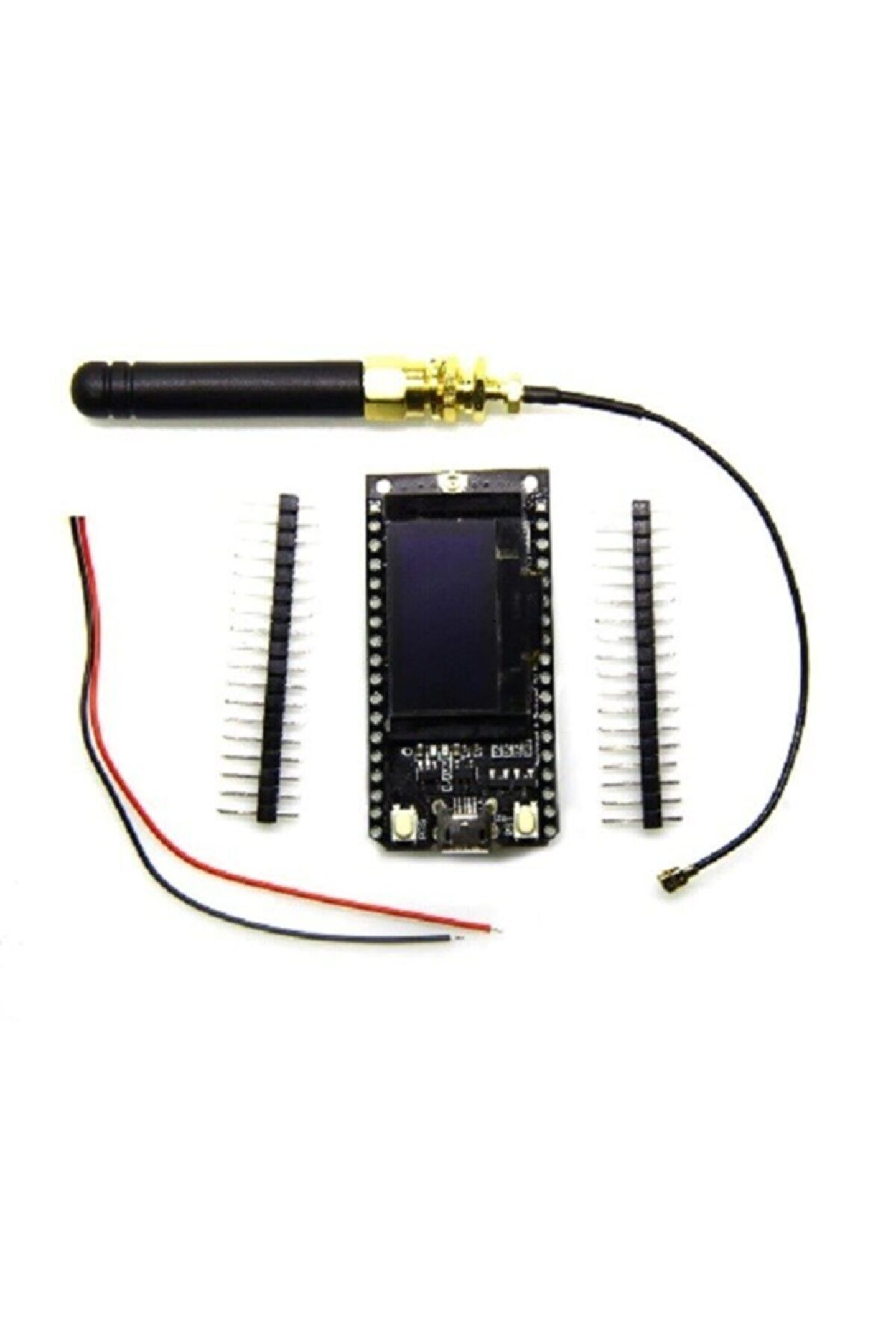

This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 868-915MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.

the onboard 4Mt bytes (32 Mt bit) wi-fi antenna, 0.96 inch oled display, lithium battery charging circuit, CP2102 interface and USB serial chip, the perfect support for Arduino development environment, can be used for program checking and product development is very easy and fast.
Operating voltage: 3.3V to 7V

Operating temperature range: -40 ° C to + 90 ° C

Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
Data rates: 150 Mbps @ 11n HT40., 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
receiver sensitivity up to -98 dBm
UDP sustained throughput of 135 Mbps

Pin diagram

Test Code：
